Lily fountain installed and finished at First Montessori of Atlanta!
August 23, 2004

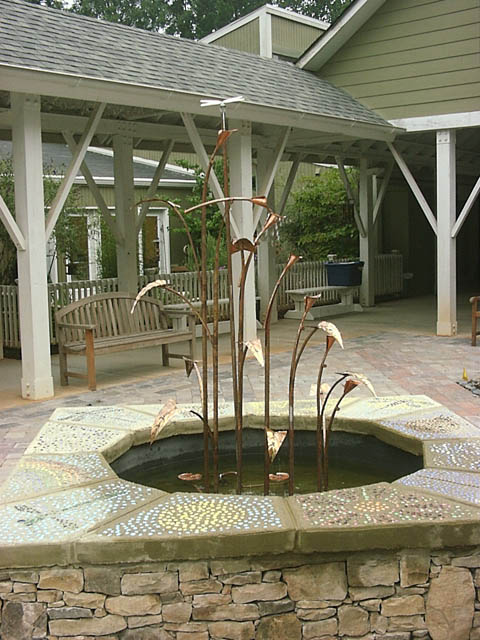

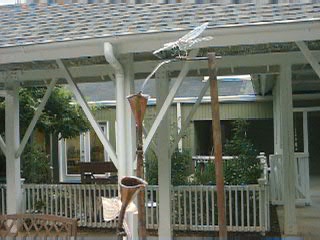

Here's some pictures of the completed lily fountain at it's home at
First Montessori Atlanta.

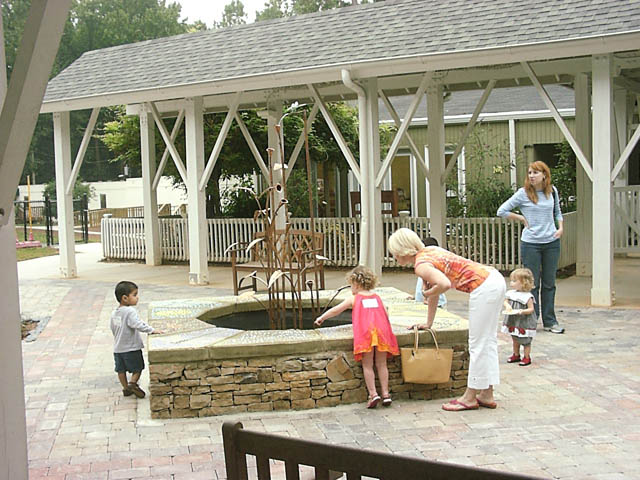

![]() Lily_kids.jpg 97k |
![]() Lily_front.jpg 92k |

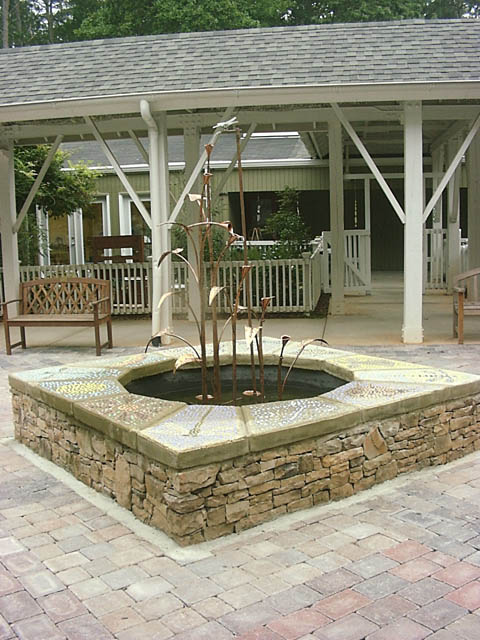

![]() Lily_side.jpg 93k |

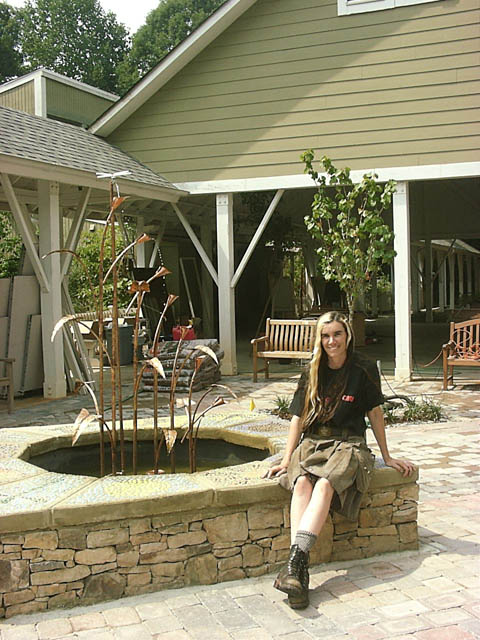

![]() Lily_Kiki.jpg 99k |

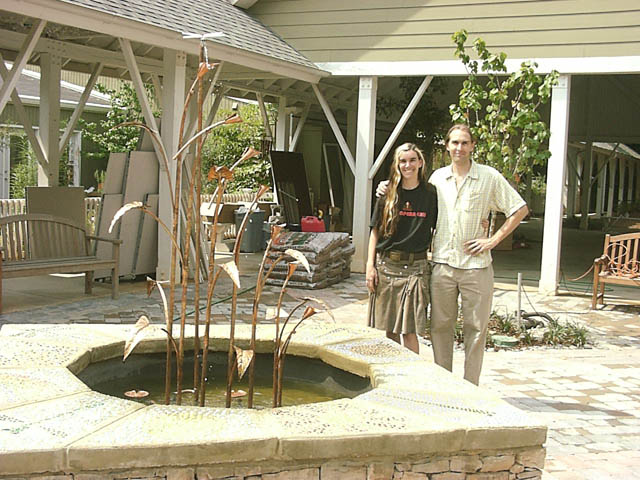

![]() Kiki_Jeff.jpg 99k |
![]() Lily_side_close.jpg 64k |

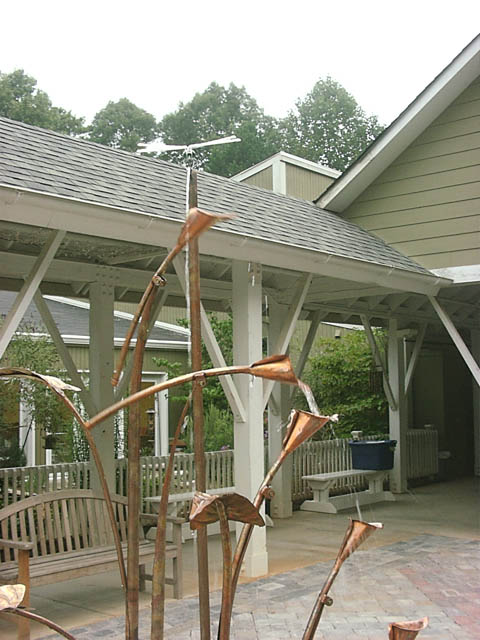

![]() Lily_tipping.jpg 79k |

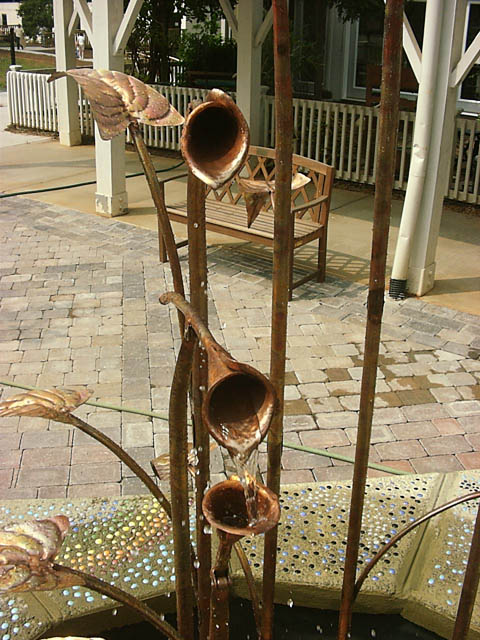

![]() Lilies_tilt.jpg 104k |

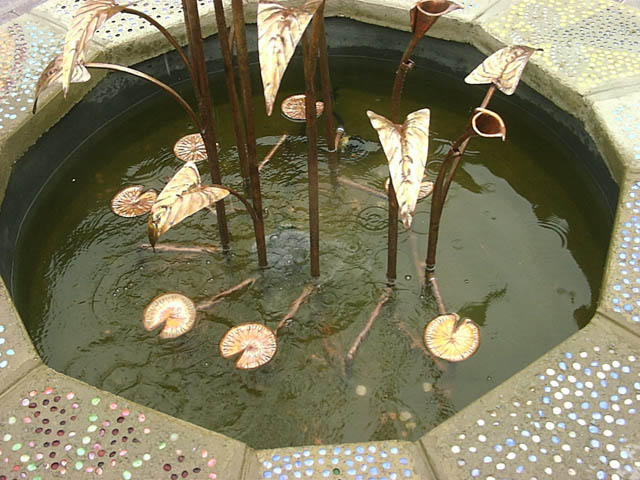

![]() Lily_bottom.jpg 86k |
![]() Jeremys_dragonfly.jpg 49k |

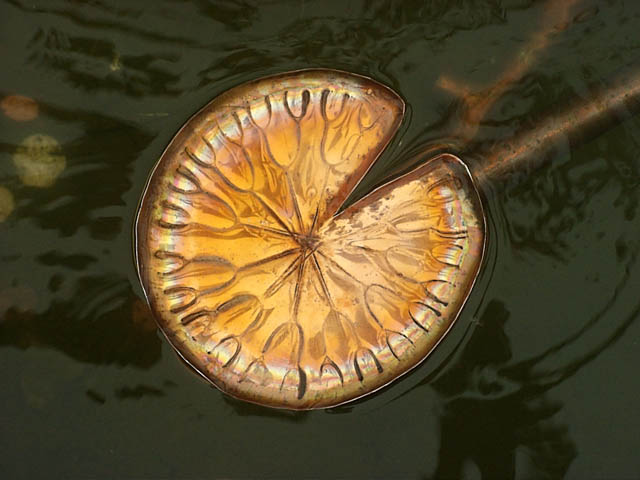

![]() Lilypad.jpg 56k |

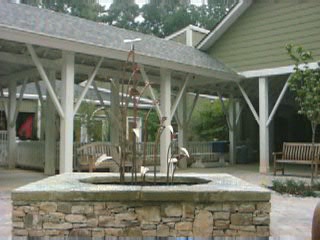

![]() tipping.avi 2.7m |
![]() tipping_close.avi 1.7m |

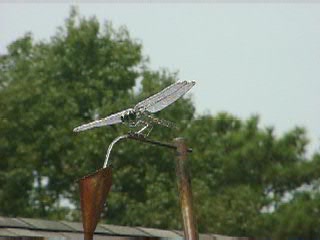

![]() Dragonfly_flutters_side.avi 3.5m |
![]() Dragonfly_flutters.avi 1.9m |

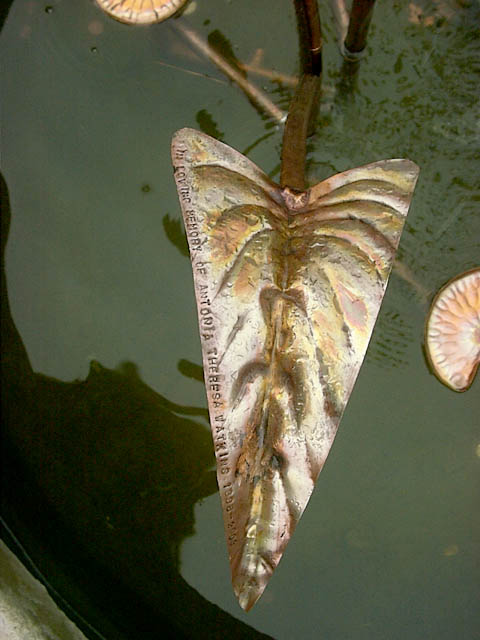

![]() Antonia_dedication.jpg 55k |
![]() Burning_Ideas_credits.jpg 66k |

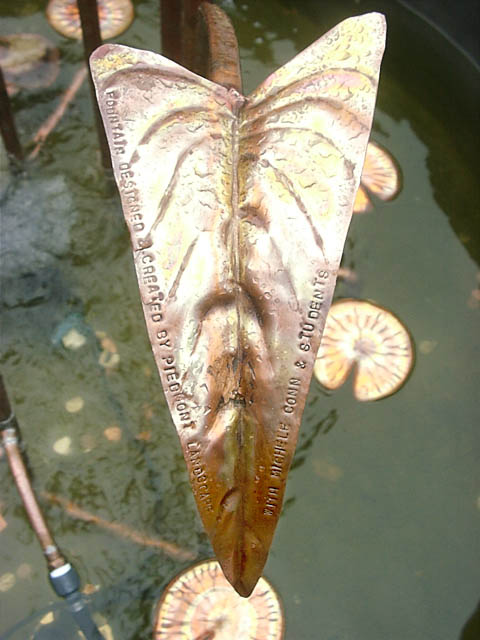

![]() Landscape_credits.jpg 63k |
![]() dragonfly_larvae.jpg 56k |
Lily leaves and lilypads get veins
July 28, 2004
Here's how I made the veins for the leaves in the fountain.
I have a friend who has a pond and I went over to look at his lilypads.
The veins are very unusual -- this is what they really look like!
When I put the veins in the copper lilypads,
it really makes them look real!
The lily leaves are also authentic, based on real leaves.
I was inspired to make the leaf veins after a visit
to the SunBrothers' studio. They're friends of mine who
make copper solar roses.

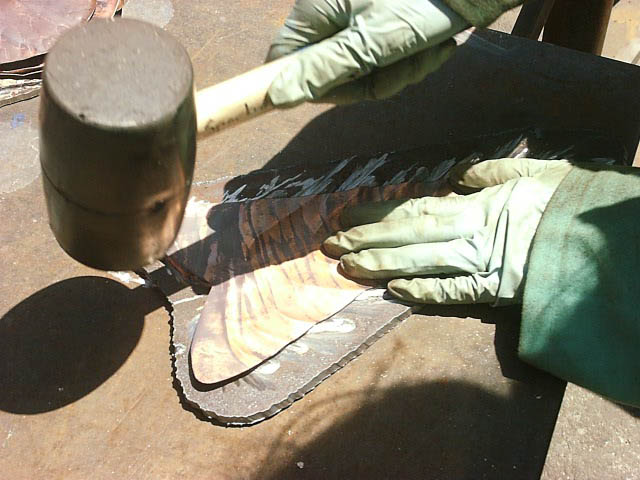

The lilypad form I made by plasma cutting the form out roughly,
then grinding it so the edges were sharp, but still even with eachother.
Then I braised it to a piece of steel
so it would hold its shape when I pounded it.
I made the lily leaf form by laying down a bead of metal with a
MIG welder, then grinding the edges the same way -- sharp, but
still in the same plane.

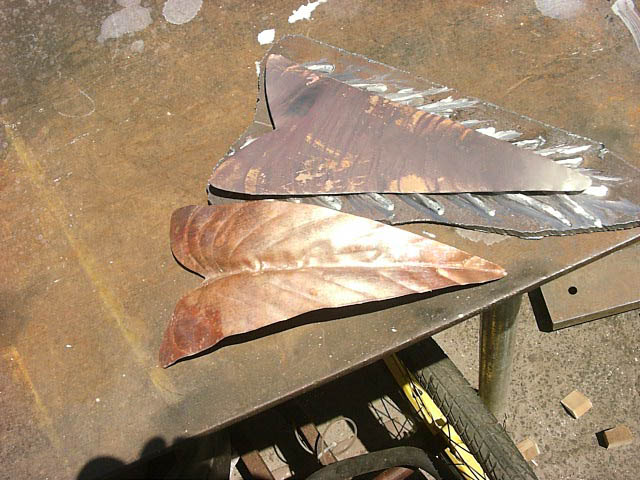

After that, I wanted to give a curve to the leaves and also
give them so thickness, so I made a form to pound the spine over.
When pounded against a sandbag, the spine makes the leaf arch
and makes the whole leaf more rounded.
I will weld a thick stem to it, to give it even more thickness.
The lilypad form took over 4 hours, and the lily leaf form took
over 5 hours, but the effect they have on the leaves to make them
look natural, was well worth the effort!

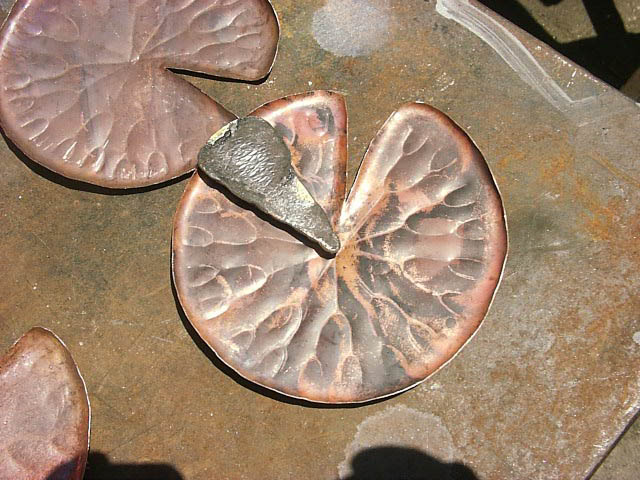

![]() veins_in_use.jpg 92k |

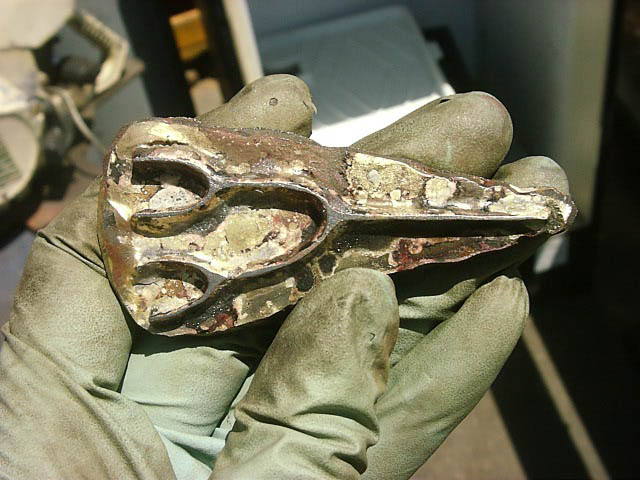

![]() lilypad_veins_form.jpg 78k |

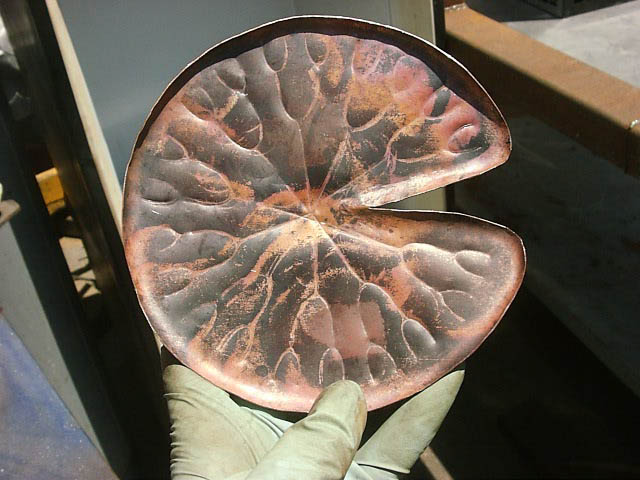

![]() lilypad_veins.jpg 71k |

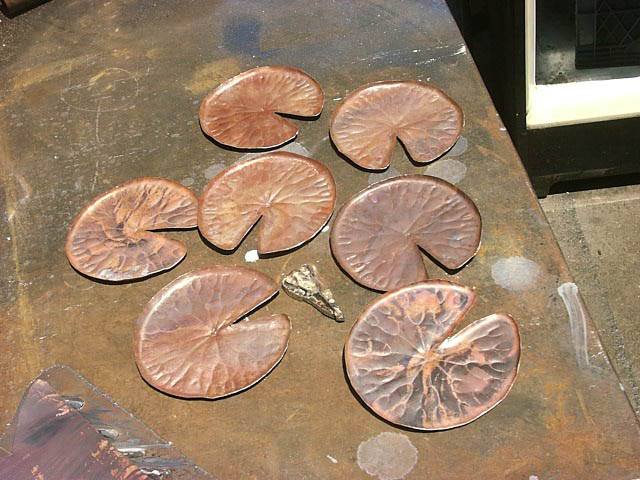

![]() lilypads_all.jpg 85k |

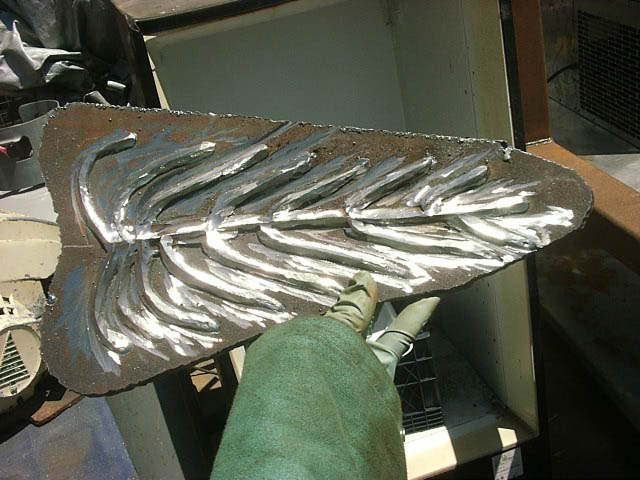

![]() lily_leaf_veins_form.jpg 76k |
![]() Kiki_pounds_leaf.jpg 82k |
![]() pounding_closeup.jpg 68k |
![]() leaf_ready_to_pound.jpg 81k |

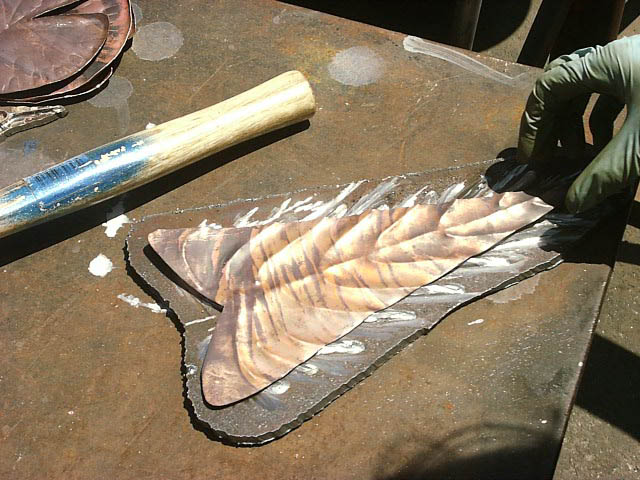

![]() leaf_veins_done.jpg 89k |

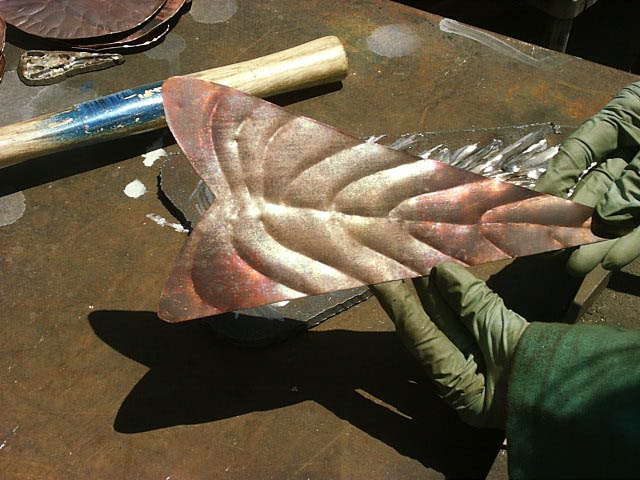

![]() leaf_veins_finished.jpg 76k |
![]() before_after.jpg 85k |
![]() leaf_spine_form.jpg 74k |

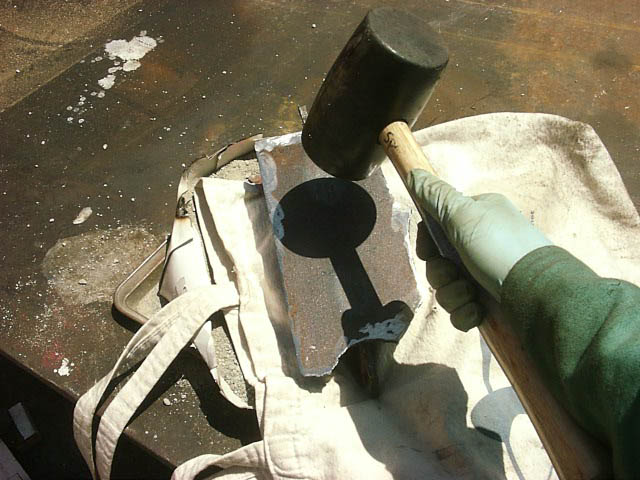

![]() pound_leaf_spine.jpg 76k |

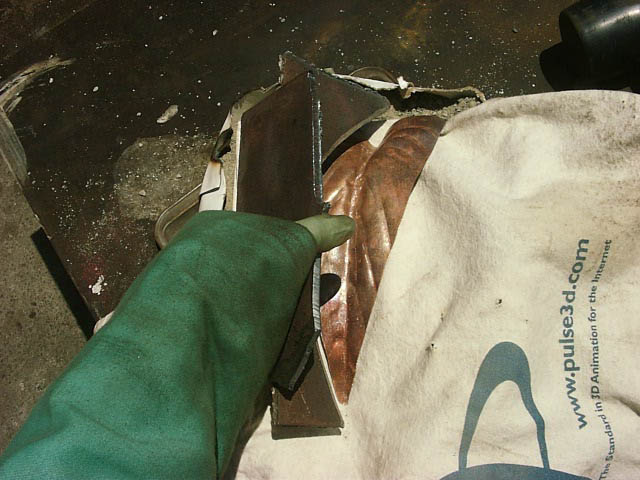

![]() leaf_spine_pounded.jpg 69k |
Copper is polished and colored with flames.
June 6, 2004

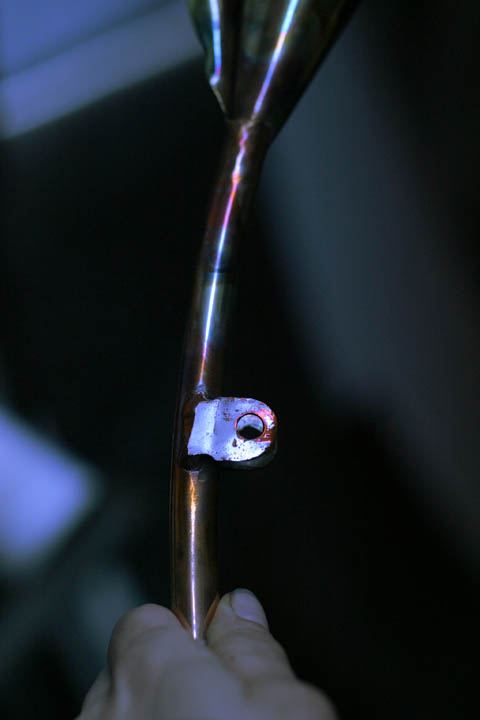

I polished this flower and just touched it with a gentle pinpoint
flame, which caused oxides to grow on the copper. These oxides are thin
and cause irridescence on the surface -- similar to how soap bubbles
are colorful, but don't have pigments. Bird feathers are also the same.
Try holding a colorful feather up to the light -- it is actually only brown or gray.
These oxides might even protect the copper for a while and prevent it from corroding,
but probably over time, they will still turn penny-brown, then green with age.
But the bright colors will look really spectacular when the fountain is dedicated!

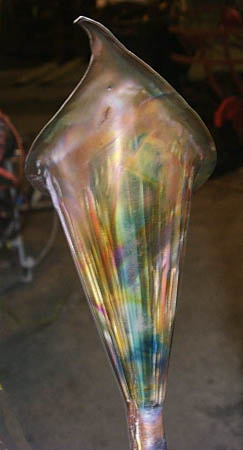

![]() back.jpg 26k |
![]() side.jpg 35k |
![]() side_close.jpg 40k |

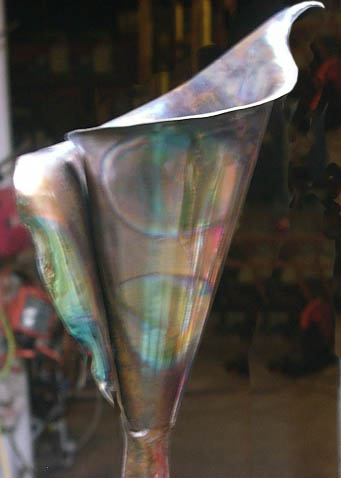

![]() side_spots.jpg 30k |
![]() pivot_shine.jpg 33k |
Movies and pics of all set up
June 5, 2004

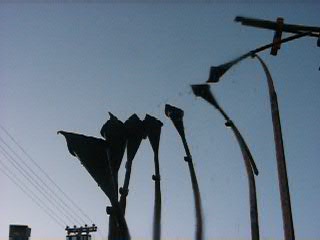

Some quick movies and pictures of al the lilies functioning,
wihle the light is good!
Now, back to work! :)

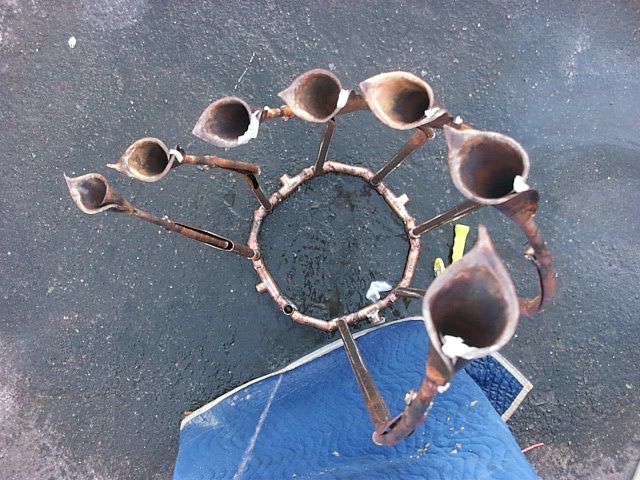

![]() 06050013.jpg 133k |

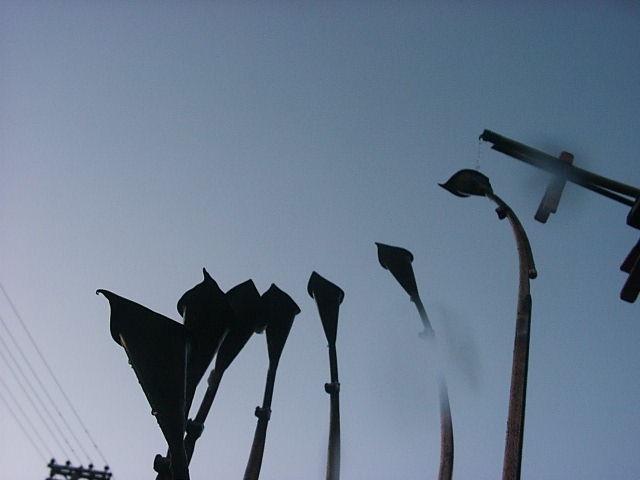

![]() 06050018.jpg 116k |

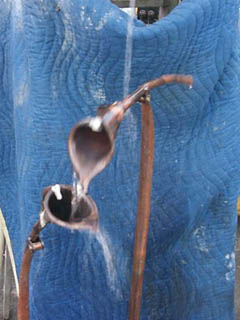

![]() 06050024.jpg 28k |

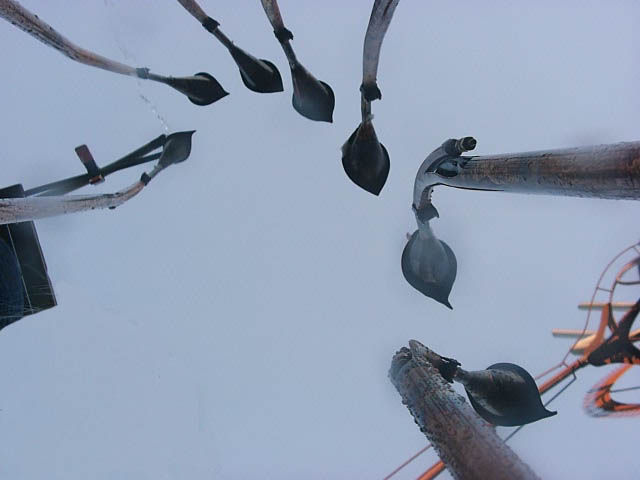

![]() 06050027.jpg 36k |
![]() 06050008.avi 3.3m |
![]() 06050010.avi 3.2m |
![]() 06050019.avi 1.4m |

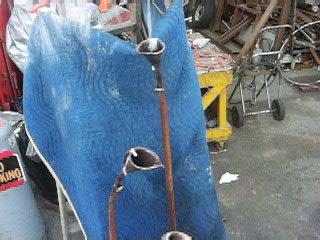

![]() 06050025.avi 1.5m |
![]() 06050026.avi 1.3m |
![]() silhouette.mov 1.3m |
All lilies are now set up!
June 2, 2004

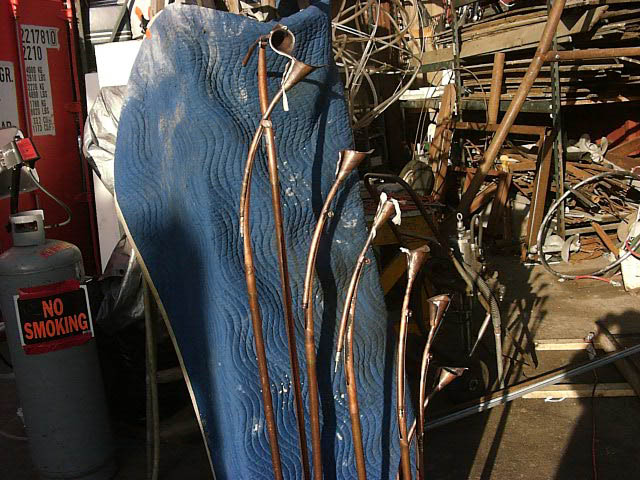

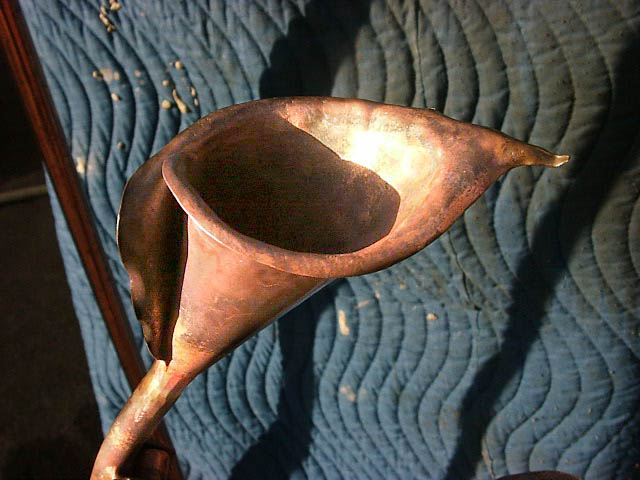

All the lilies are now set up in their base for a first test!
How exciting!!
![]() 1_lily.jpg 105k |
![]() all_7.jpg 105k |
![]() lily_from_above.jpg 61k |
![]() lily_from_side.jpg 68k |
![]() pivot_closeup.jpg 56k |
![]() base.jpg 112k |
Testing some lilies to see if they dump properly.
May 28, 2004
Using just clamps, I set up the lilies in bunches to see how well
they worked dumping one into another.
![]() 3tip_2cycle.avi 3.1m |
![]() 4tip_2cycle.avi 2.8m |

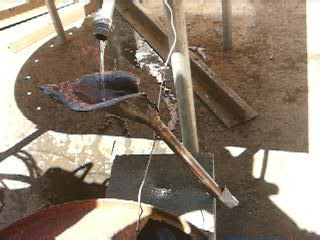

Big lily tipping test
April 23, 2004

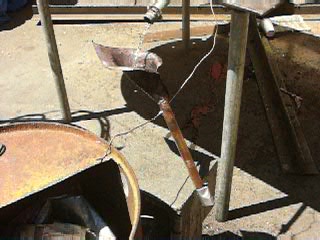

This is the big lily that I originally made to test the concept
of a tipping lily flower.
![]() lily_tipping.avi 3.2m |
![]() 04230001.AVI 3.2m |

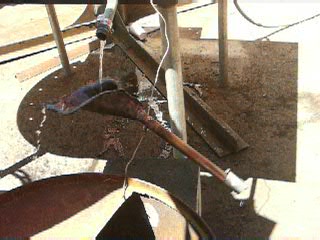

![]() 04230002.AVI 3.1m |
![]() 04230003.AVI 1.4m |
Lily head finished
April 15, 2004

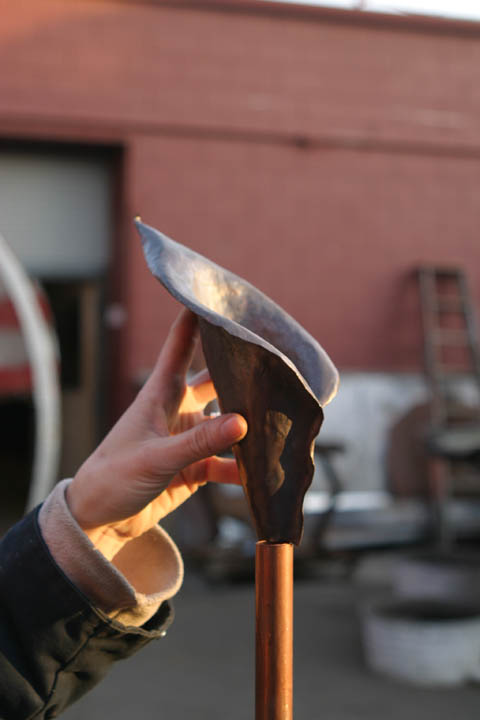

The copper lily head finished, and held up with a potential stem.
![]() flower_head.jpg 49k |
![]() flower_head_side.jpg 43k |
![]() Kiki_flower.jpg 59k |

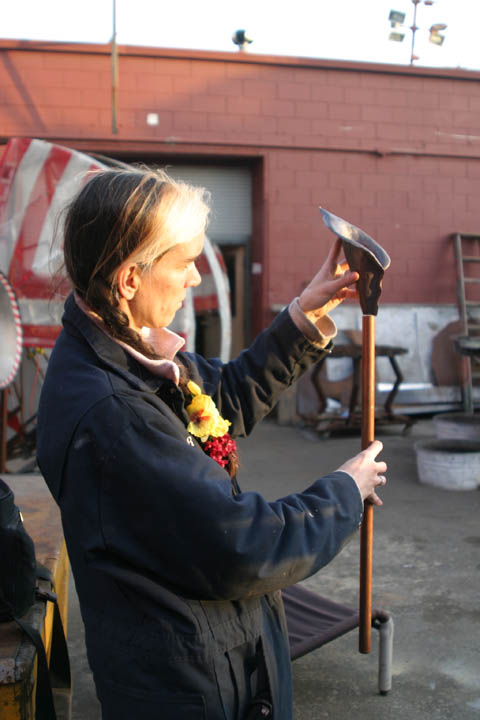

![]() Kiki_flower_side.jpg 64k |
Kiki's sketches
March 17, 2004
Some initial concept sketches by Kiki, to show what she could do,
and some other ideas for the fountain.
![]() leaves.jpg 33k |
![]() lily_tip.jpg 27k |
Initial concept sketch
February 12, 2004
This is the sketch sent to me by First Montessori, to describe what
they want the fountain to look like.
![]() Dragonfly_fountain.jpg 28k |
